At TFE – Transmission & Fluid Equipment we stock Brennan hydraulic adapters. The tables below show the styles and sizes we commonly stock. If you require a style or size not shown, please call our Customer Service Department for pricing and availability.

JIC x Pipe Straight Adapter Male 2404 Series

JIC x Pipe Straight Adapter Male 2404 Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length L Hex C
1 2404-04-02 1/4 7/16-20 1/8-27 1.218 1/2
2 2404-04-04 1/4 7/16-20 1/4-18 1.421 5/8
3 2404-04-06 1/4 7/16-20 3/8-18 1.421 5/8
4 2404-05-02 5/16 1/2-20 1/8-27 1.218 9/16
5 2404-05-04 5/16 1/2-20 1/4-18 1.421 5/8
6 2404-06-02 3/8 9/16-18 1/8-27 1.25 5/8
7 2404-06-04 3/8 9/16-18 1/4-18 1.437 5/8
8 2404-06-06 3/8 9/16-18 3/8-18 1.421 13/16
9 2404-06-08 3/8 9/16-18 1/2-14 1.687 15/16
10 2404-08-04 1/2 3/4-16 1/4-18 1.531 13/16
11 2404-08-06 1/2 3/4-16 3/8-18 1.531 13/16
12 2404-08-08 1/2 3/4-16 1/2-14 1.781 15/16
13 2404-08-12 1/2 3/4-16 3/4-14 1.859 1 1/8
14 2404-10-06 5/8 7/8-14 3/8-18 1.7 15/16
15 2404-10-08 5/8 7/8-14 1/2-14 1.89 15/16
16 2404-10-12 5/8 7/8-14 3/4-14 1.95 1 1/8
17 2404-12-08 3/4 1 1/16-12 1/2-14 1.765 1 1/8
18 2404-12-12 3/4 1 1/16-12 3/4-14 2.062 1 3/8
19 2404-12-16 3/4 1 1/16-12 1-11 1/2 2.25 1 11/16
20 2404-14-12 7/8 1 3/16-12 3/4-14 2.093 1 1/4
21 2404-16-12 1 1 5/16-12 3/4-14 2.11 1 3/8
22 2404-16-16 1 1 5/16-12 1-11 1/2 2.296 1 3/8
23 2404-16-20 1 1 5/16-12 1 1/4-11 1/2 2.406 1 11/16
24 2404-20-16 1 1/4 1 5/8-12 1-11 1/2 2.421 1 11/16
25 2404-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 2.453 1 11/16
26 2404-20-24 1 1/4 1 5/8-12 1 1/2-11 1/2 2.555 2
27 2404-24-20 1 1/2 1 7/8-12 1 1/4-11 1/2 2.64 2
28 2404-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 2.687 2
29 2404-24-32 1 1/2 1 7/8-12 2-11 1/2 2.86 2 1/2
30 2404-32-24 2 2 1/2-12 1 1/2-11 1/2 3.08 2 5/8
31 2404-32-32 2 2 1/2-12 2-11 1/2 3.109 2 5/8
32 2404-40-40 2 1/2 3-12 2 1/2-8 3.375 3 1/4

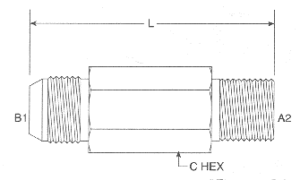

JIC x Pipe Straight Adapter Male Long 2404-L Series

JIC x Pipe Straight Adapter Male Long 2404-L Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length L Hex C
1 2404-L-04-02 1/4 7/16-20 1/8-27 1.812 1/2
2 2404-L-04-04 1/4 7/16-20 1/4-18 2.253 5/8
3 2404-L-05-02 5/16 1/2-20 1/8-27 1.937 9/16
4 2404-L-06-04 3/8 9/16-18 1/4-18 2.25 5/8
5 2404-L-06-06 3/8 9/16-18 3/8-18 2.501 3/4
6 2404-L-08-06 1/2 3/4-16 3/8-18 2.75 13/16
7 2404-L-08-08 1/2 3/4-16 1/2-14 3.041 7/8
8 2404-L-10-08 5/8 7/8-14 1/2-14 3.125 15/16
9 2404-L-12-12 3/4 1 1/16-12 3/4-14 3.5 1 1/8
10 2404-L-16-16 1 1 5/16-12 1-11 1/2 4 1 3/8
11 2404-L-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 4.5 1 11/16

JIC x Pipe Straight Adapter Male Extra Long 2404-LL Series

JIC x Pipe Straight Adapter Male Extra Long 2404-LL Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length L Hex C
1 2404-LL-04-02 1/4 7/16-20 1/8-27 2.562 1/2
2 2404-LL-04-04 1/4 7/16-20 1/4-18 3.251 5/8
3 2404-LL-05-02 5/16 1/2-20 1/8-27 2.812 9/16
4 2404-LL-06-04 3/8 9/16-18 1/4-18 3.25 5/8
5 2404-LL-06-06 3/8 9/16-18 3/8-18 3.922 3/4
6 2404-LL-08-06 1/2 3/4-16 3/8-18 4 13/16
7 2404-LL-08-08 1/2 3/4-16 1/2-14 4.199 7/8
8 2404-LL-10-08 5/8 7/8-14 1/2-14 4.375 15/16
9 2404-LL-12-12 3/4 1 1/16-12 3/4-14 5 1 1/8
10 2404-LL-16-16 1 1 5/16-12 1-11 1/2 5.75 1 3/8

JIC x Pipe 90 º Adapter Male 2501 Series

JIC x Pipe 90 º Adapter Male 2501 Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length M Length L Square Y
1 2501-04-02 1/4 7/16-20 1/8-27 0.89 0.781 1/2
2 2501-04-04 1/4 7/16-20 1/4-18 1.05 1.093 5/8
3 2501-04-06 1/4 7/16-20 3/8-18 0.98 1.218 13/16
4 2501-05-02 5/16 1/2-20 1/8-27 0.953 0.781 9/16
5 2501-05-04 5/16 1/2-20 1/4-18 1.05 1.093 5/8
6 2501-06-02 3/8 9/16-18 1/8-27 1.062 0.9 5/8
7 2501-06-04 3/8 9/16-18 1/4-18 1.062 1.093 5/8
8 2501-06-06 3/8 9/16-18 3/8-18 1.14 1.218 13/16
9 2501-06-08 3/8 9/16-18 1/2-14 1.13 1.468 15/16
10 2501-08-04 1/2 3/4-16 1/4-18 1.25 1.22 13/16
11 2501-08-06 1/2 3/4-16 3/8-18 1.25 1.218 13/16
12 2501-08-08 1/2 3/4-16 1/2-14 1.33 1.468 15/16
13 2501-08-12 1/2 3/4-16 3/4-14 1.406 1.593 1 1/8
14 2501-10-06 5/8 7/8-14 3/8-18 1.453 1.281 15/16
15 2501-10-08 5/8 7/8-14 1/2-14 1.453 1.468 15/16
16 2501-10-12 5/8 7/8-14 3/4-14 1.546 1.593 1 1/8
17 2501-12-08 3/4 1 1/16-12 1/2-14 1.656 1.59 1 1/8
18 2501-12-12 3/4 1 1/16-12 3/4-14 1.656 1.593 1 1/8
19 2501-12-16 3/4 1 1/16-12 1-11 1/2 1.76 1.968 1 3/8
20 2501-14-12 7/8 1 3/16-12 3/4-14 1.8 1.687 1 1/4
21 2501-16-12 1 1 5/16-12 3/4-14 1.812 1.78 1 3/8
22 2501-16-16 1 1 5/16-12 1-11 1/2 1.812 1.968 1 3/8
23 2501-16-20 1 1 5/16-12 1 1/4-11 1/2 2.09 2.375 1 3/4
24 2501-20-16 1 1/4 1 5/8-12 1-11 1/2 2.062 2.156 1 3/4
25 2501-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 2.062 2.375 1 3/4
26 2501-20-24 1 1/4 1 5/8-12 1 1/2-11 1/2 2.3 2.64 2
27 2501-24-20 1 1/2 1 7/8-12 1 1/4-11 1/2 2.328 2.5 2
28 2501-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 2.328 2.64 2
29 2501-32-24 2 2 1/2-12 1 1/2-11 1/2 3.08 2.64 2 5/8
30 2501-32-32 2 2 1/2-12 2-11 1/2 3.062 3 2 5/8

JIC x Pipe 90 º Adapter Male Long 2501-L Series

JIC x Pipe 90 º Adapter Male Long 2501-L Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length M Length L Square Y
1 2501-L-04-02 1/4 7/16-20 1/8-27 0.89 1.171 1/2
2 2501-L-04-04 1/4 7/16-20 1/4-18 0.97 1.59 5/8
3 2501-L-05-02 5/16 1/2-20 1/8-27 0.953 1.17 9/16
4 2501-L-06-04 3/8 9/16-18 1/4-18 1.062 1.578 5/8
5 2501-L-06-06 3/8 9/16-18 3/8-18 1.156 1.828 13/16
6 2501-L-08-06 1/2 3/4-16 3/8-18 1.25 1.828 13/16
7 2501-L-08-08 1/2 3/4-16 1/2-14 1.25 2.23 15/16
8 2501-L-10-08 5/8 7/8-14 1/2-14 1.453 2.171 15/16
9 2501-L-12-12 3/4 1 1/16-12 3/4-14 1.656 2.437 1 1/8
10 2501-L-16-16 1 1 5/16-12 1-11 1/2 1.812 3.015 1 3/8
11 2501-L-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 2.062 3.687 1 3/4
12 2501-L-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 2.323 4.109 2

JIC x Pipe 90 º Adapter Male Extra Long 2501-LL Series

JIC x Pipe 90 º Adapter Male Extra Long 2501-LL Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length M Length L Square Y
1 2501-LL-04-02 1/4 7/16-20 1/8-27 0.89 1.562 1/2
2 2501-LL-04-04 1/4 7/16-20 1/4-18 0.97 1.99 5/8
3 2501-LL-05-02 5/16 1/2-20 1/8-27 0.953 1.625 9/16
4 2501-LL-06-04 3/8 9/16-18 1/4-18 1.062 2.078 5/8
5 2501-LL-06-06 3/8 9/16-18 3/8-18 1.16 2.5 13/16
6 2501-LL-08-06 1/2 3/4-16 3/8-18 1.25 2.421 13/16
7 2501-LL-08-08 1/2 3/4-16 1/2-14 1.25 3.01 15/16
8 2501-LL-10-08 5/8 7/8-14 1/2-14 1.453 2.875 15/16
9 2501-LL-12-12 3/4 1 1/16-12 3/4-14 1.656 3.281 1 1/8
10 2501-LL-16-16 1 1 5/16-12 1-11 1/2 1.812 4.046 1 3/8
11 2501-LL-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 2.062 4.88 1 3/4
12 2501-LL-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 2.323 5.75 2

JIC x Pipe 45 º Adapter Male 2503 Series

JIC x Pipe 45 º Adapter Male 2503 Series

wdt_ID Part # Tube Size Thread B1 Thread A2 Length M Length L Hex C
1 2503-04-02 1/4 7/16-20 1/8-27 0.718 0.64 1/2
2 2503-04-04 1/4 7/16-20 1/4-18 0.812 0.859 5/8
3 2503-05-02 5/16 1/2-20 1/8-27 0.765 0.64 9/16
4 2503-05-04 5/16 1/2-20 1/4-18 0.828 0.859 5/8
5 2503-06-02 3/8 9/16-18 1/8-27 0.812 0.656 5/8
6 2503-06-04 3/8 9/16-18 1/4-18 0.823 0.859 13/16
7 2503-06-06 3/8 9/16-18 3/8-18 0.906 0.953 15/16
8 2503-08-04 1/2 3/4-16 1/4-18 0.984 0.937 13/16
9 2503-08-06 1/2 3/4-16 3/8-18 0.984 0.953 13/16
10 2503-08-08 1/2 3/4-16 1/2-14 1.125 1.171 15/16
11 2503-08-12 1/2 3/4-16 3/4-14 1.187 1.203 1 1/8
12 2503-10-06 5/8 7/8-14 3/8-18 1.109 1.062 15/16
13 2503-10-08 5/8 7/8-14 1/2-14 1.109 1.171 15/16
14 2503-10-12 5/8 7/8-14 3/4-14 1.265 1.203 1 1/8
15 2503-12-08 3/4 1 1/16-12 1/2-14 1.281 1.187 1 1/8
16 2503-12-12 3/4 1 1/16-12 3/4-14 1.281 1.203 1 1/8
17 2503-12-16 3/4 1 1/16-12 1-11 1/2 1.421 1.484 1 3/8
18 2503-14-12 7/8 1 3/16-12 3/4-14 1.45 1.3 1 1/4
19 2503-16-12 1 1 5/16-12 3/4-14 1.468 1.281 1 3/8
20 2503-16-16 1 1 5/16-12 1-11 1/2 1.468 1.484 1 3/8
21 2503-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 1.593 1.671 1 3/4
22 2503-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 1.781 1.765 2
23 2503-32-32 2 2 1/2-12 2-11 1/2 2.218 2.109 2 5/8

JIC x Pipe Male Branch Tee 2601 Series

JIC x Pipe Male Branch Tee 2601 Series

wdt_ID Part # Tube Size Thread B1 & B3 Thread A2 Length M Length L Square Y
1 2601-04-04-02 1/4 7/16-20 1/8-27 0.89 0.781 1/2
2 2601-04-04-04 1/4 7/16-20 1/4-18 0.953 1.105 5/8
3 2601-05-05-02 5/16 1/2-20 1/8-27 0.953 0.781 9/16
4 2601-06-06-04 3/8 9/16-18 1/4-18 1.062 1.093 5/8
5 2601-06-06-06 3/8 9/16-18 3/8-18 1.156 1.218 13/16
6 2601-08-08-06 1/2 3/4-16 3/8-18 1.25 1.218 13/16
7 2601-08-08-08 1/2 3/4-16 1/2-14 1.36 1.468 15/16
8 2601-10-10-08 5/8 7/8-14 1/2-14 1.453 1.468 15/16
9 2601-12-12-12 3/4 1 1/16-12 3/4-14 1.656 1.593 1 1/8
10 2601-16-16-16 1 1 5/16-12 1-11 1/2 1.812 1.968 1 3/8
11 2601-20-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 2.062 2.375 1 3/4
12 2601-24-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 2.328 2.64 2

JIC x Pipe Male Run Tee 2605 Series

JIC x Pipe Male Run Tee 2605 Series

wdt_ID Part # Tube Size Thread B1 & B2 Thread A3 Length M Length L Square Y
1 2605-04-02-04 1/4 7/16-20 1/8-27 0.89 0.781 1/2
2 2605-04-04-04 1/4 7/16-20 1/4-18 0.953 1.093 5/8
3 2605-05-02-05 5/16 1/2-20 1/8-27 0.953 0.781 9/16
4 2605-06-04-06 3/8 9/16-18 1/4-18 1.062 1.093 5/8
5 2605-06-06-06 3/8 9/16-18 3/8-18 1.156 1.24 13/16
6 2605-08-06-08 1/2 3/4-16 3/8-18 1.25 1.218 13/16
7 2605-08-08-08 1/2 3/4-16 1/2-14 1.312 1.468 15/16
8 2605-10-08-10 5/8 7/8-14 1/2-14 1.453 1.468 15/16
9 2605-12-12-12 3/4 1 1/16-12 3/4-14 1.656 1.593 1 1/8
10 2605-16-16-16 1 1 5/16-12 1-11 1/2 1.812 1.968 1 3/8
11 2605-20-20-20 1 1/4 1 5/8-12 1 1/4-11 1/2 2.062 2.375 1 3/4
12 2605-24-24-24 1 1/2 1 7/8-12 1 1/2-11 1/2 2.328 2.64 2

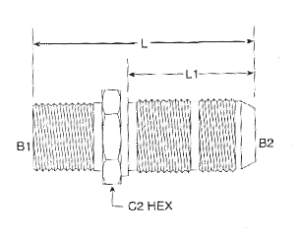

JIC x Pipe Male Bulkhead 2706 Series

JIC x Pipe Male Bulkhead 2706 Series

wdt_ID Part # Tube Size Thread B1 Thread B2 Length L Length L1 Hex C
1 2706-02-04 1/4 1/8-27 7/16-20 1.84 1.203 11/16
2 2706-04-04 1/4 1/4-18 7/16-20 2.04 1.281 11/16
3 2706-04-06 3/8 1/4-18 9/16-18 2.19 1.281 13/16
4 2706-06-08 1/2 3/8-18 3/4-16 2.35 1.437 1
5 2706-08-10 5/8 1/2-14 7/8-14 2.72 1.578 1 1/8
6 2706-12-12 3/4 3/4-14 1 1/16-12 2.92 1.75 1 3/8
7 2706-16-16 1 1-11 1/2 1 5/16-12 3.1 1.75 1 5/8
8 2706-20-20 1 1/4 1 1/4-11 1/2 1 5/8-12 3.23 1.8 1 7/8
